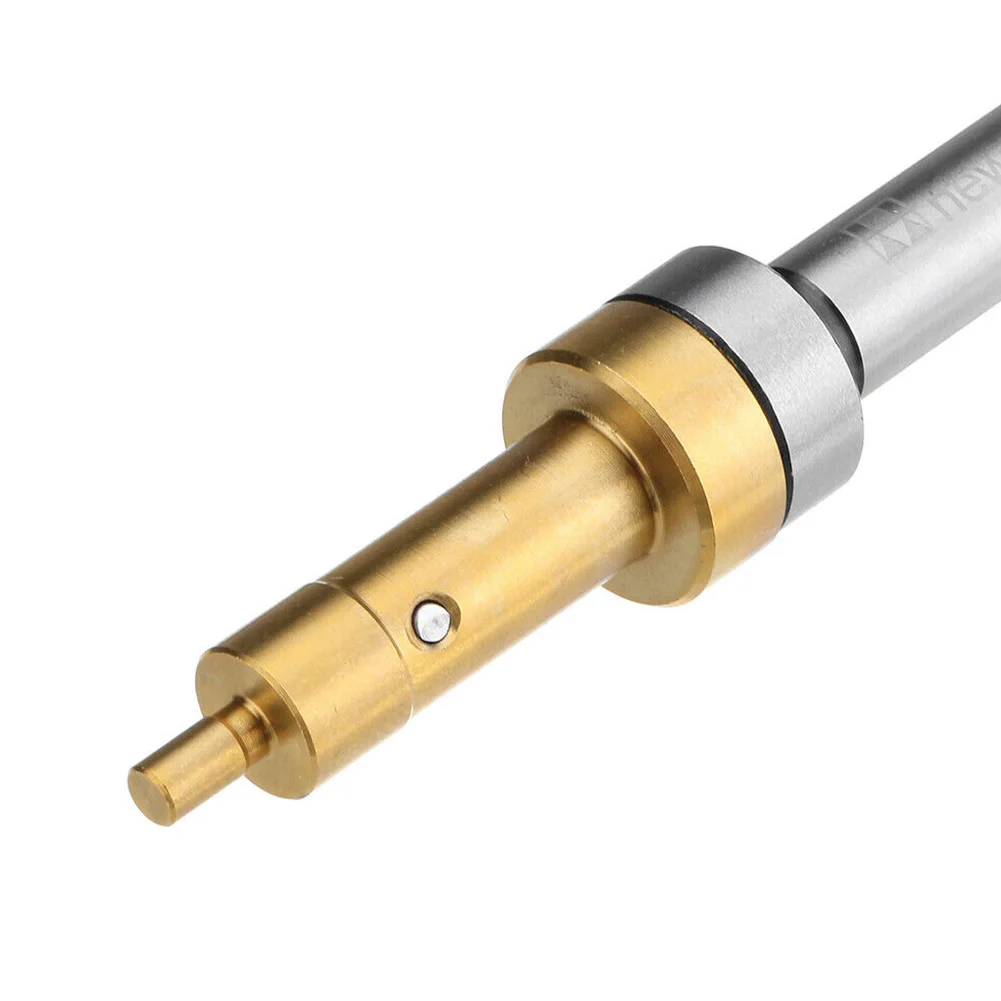

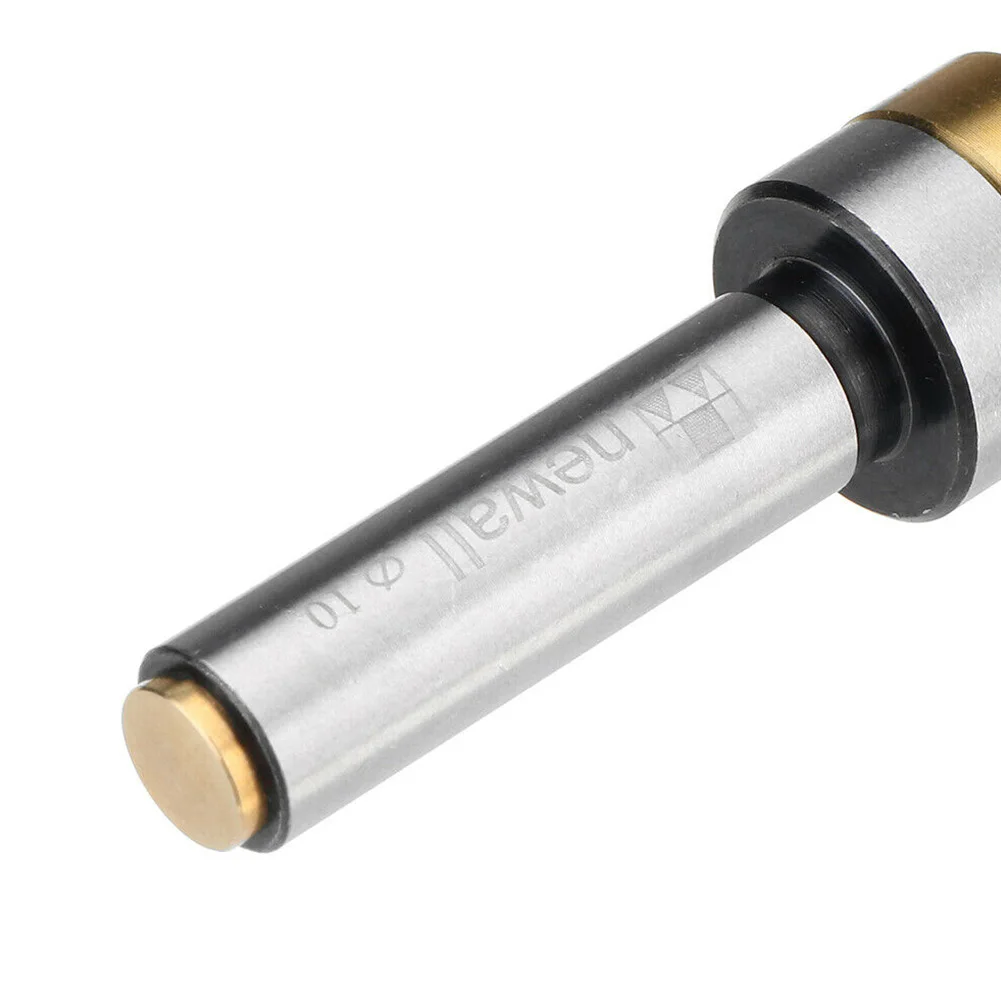

10mm Position Testing Tool Metal Sound Mechanical Speed Edge Finder Machine CNC Probe Non Magnetic Milling Shank Lathe

Features:
Made of high-speed steel, durable and wear-resistant with titanium coated.
Mechanical rotating test, no clamping error with 0.005mm accuracy.
0.4cm antimagnetic probe design for small aperture and narrow trench measuring usage.
Not necessary to rotate while measuring, because ther is no magnetic head.
Fast locate work edge for determining the precise machining center.
Specifications:
Item type: edge finder
Material: high-speed steel
Color: gold + silver
Rotation speed: 400 rpm
Accuracy: ±0.005mm
Size:
small probe diameter: about 0.4cm
middle diameter: about 2cm
handle diameter: about 1cm
total length: about 9cm
Package includes:
1pc x edge finder
Notes:
Transition: 1cm=10mm=0.39inch
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
