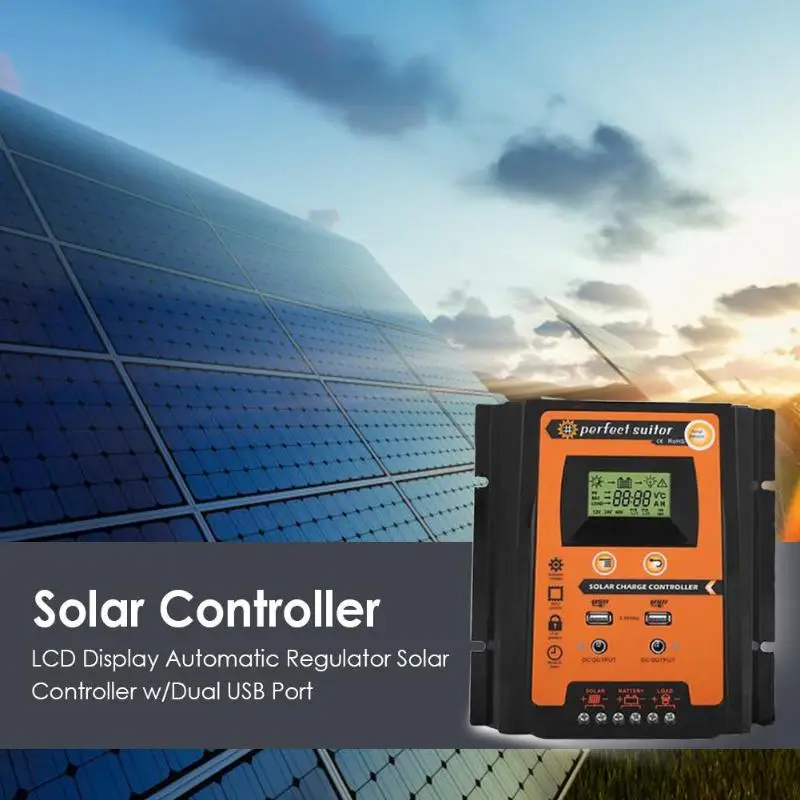

12 V/24 V lcd дисплей автоматический регулятор Солнечный контроллер с двойным usb-портом

Features:
1. Automatic identification system voltage, 12/24V automatic identification.
2. Load control mode can be selected, and the timer function of street lamp can be reset at night.
3. It has the function of working storage: recording the total running time of the system, recording the error timer in the running time and recording the time of fully charged battery.
4. Reliable over-voltage protection, short circuit protection, overload protection, over-charge protection and over-discharge protection.
5. Accurate temperature compensation, automatic correction of charge and discharge voltage, improve battery life.
6. Full reverse connection protection.
7. Solar panels, batteries and the positive poles of the solar charging controller are all connected together, and the negative MOSFET series control circuit is adopted.
Specifications:
Current: 30A, 50A, 70A
Rated voltage: 12/24V
USB Output: 2.4A*2
Overcharge current (V): 13.7V*2/24V
Overdischarge current (V): 10.5-11V*2/24V
Temperature Compensation: -3mv /℃/Battery
No-load loss: <45mA
Loop voltage drop: <200mv
Display: LCD Display
Waterproof grade: IP32
Material: Plastic + Aluminum Alloy
Color: Black + Orange
Size:
175*140*35mm/6.89*5.51*1.38"(30A)
210*190*55mm/8.27*7.48*2.17"(50A) (70A)
Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.

1 X Блок управления установкой на солнечной батарее
Руководство пользователя (1 шт.)
