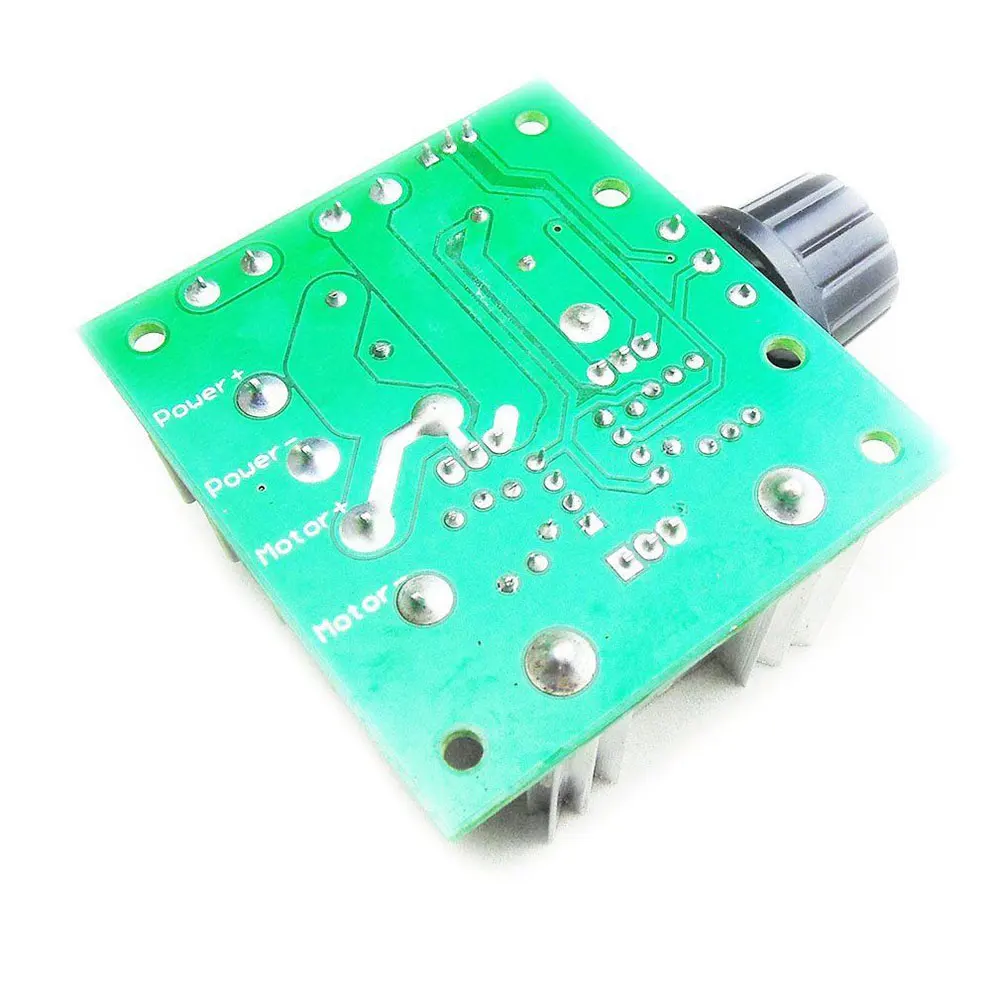

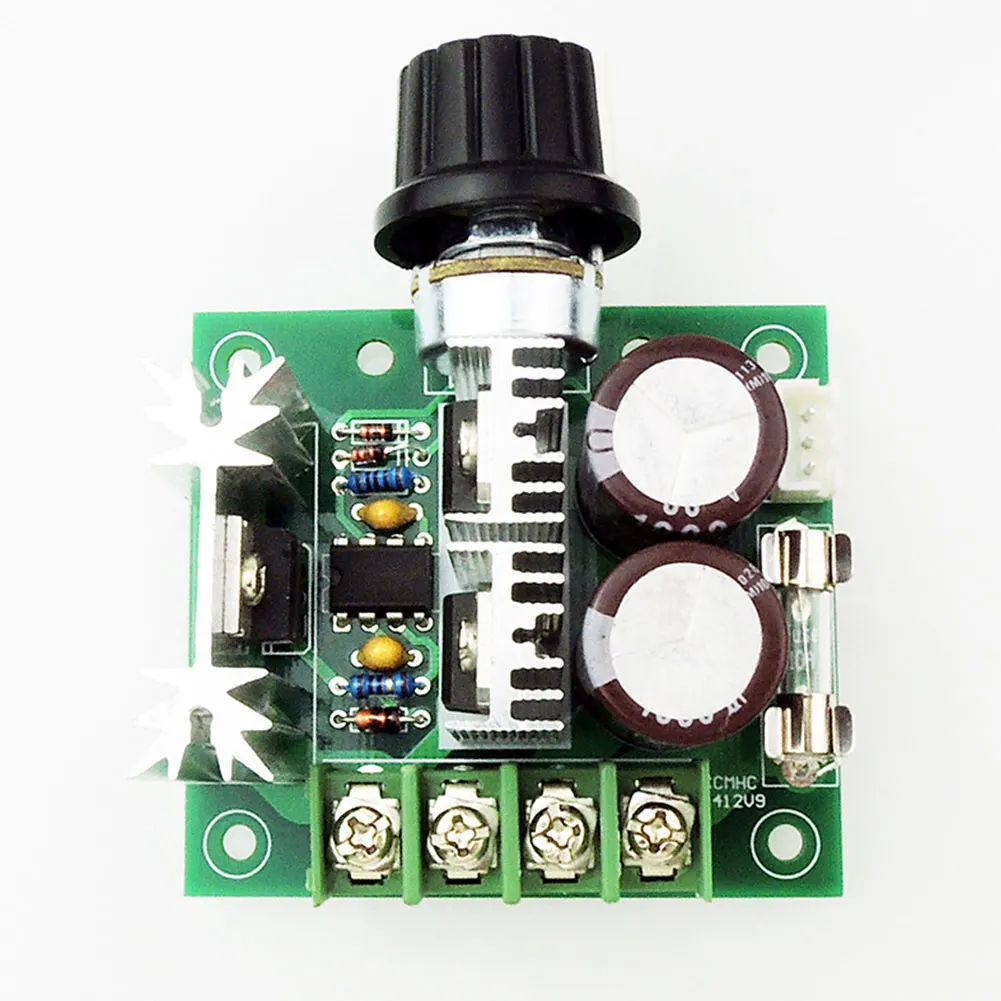

12 V-40 V 10A DC контроллер скорости двигателя ШИМ контроллер двигателя

Feature:

The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load.

The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function.

Specifications:

100% brand new and high quality.

Input supply voltage: DC 12V-40V

The maximum output power: 400W

The maximum continuous output current :8A

The overload and short circuit protecting current is 10A

Static Current:0.02 A ( Standby )

PWM frequency: 13kHz

Duty Cycle adjustable: 10%-100%

The operation environment temperature:-20-40℃

The 10A fuse with reverse connection of power supply and control voltage over-voltage protection function

Size: (L*W*H): 6*5.5*2.8cm(approx)

Net weight: 69g

Package Include:

1 * 12V - 40V 10A DC Motor Speed Controller

NOTE:

This can NOT be used to the BRUSHLESS motor.

The controller is NOT reverse-polarity protected and will be damaged if connect the supply voltage with wrong polarity.

Double check all connections before applying power and always turn off the power supply before making any wiring changes.

Please allow slight deviation for the measurement data
