4/8 канальный многофункциональный модуль реле времени интерфейсная плата модуль_ WK

4/8 канальный многофункциональный модуль реле времени интерфейсная плата модуль _ WK

Feature:
With Indicator Light: With power indicator light and relay suction indicator light
High Precision: At least 1 second timing function can be set, accurate timing, error less than 1%
New Energy Saving Function: Add automatic power saving function
Multi-function relay control module, using industrial-grade high-quality components, carefully designed and processed, stable performance, simple operation, can be widely used in various power control applications.
The module presets up to 20 kinds of functions

Specification:
Working voltage: DC 8V-36V (limit working voltage DC 6V-45V)
rated power:
Static power <0.1W (when the relay is not connected)
Dynamic power <3.0W (when the relay is fully engaged)
Working temperature: -20 -60 degC (limit operating temperature range -30-70degC)
Bearing Capacity:
Relay normally open port load capacity: DC 0-30V / 10A, AC 0-250V / 10A
Relay normally closed port load capacity: DC 0-28V / 10A, AC 0-125V / 10A

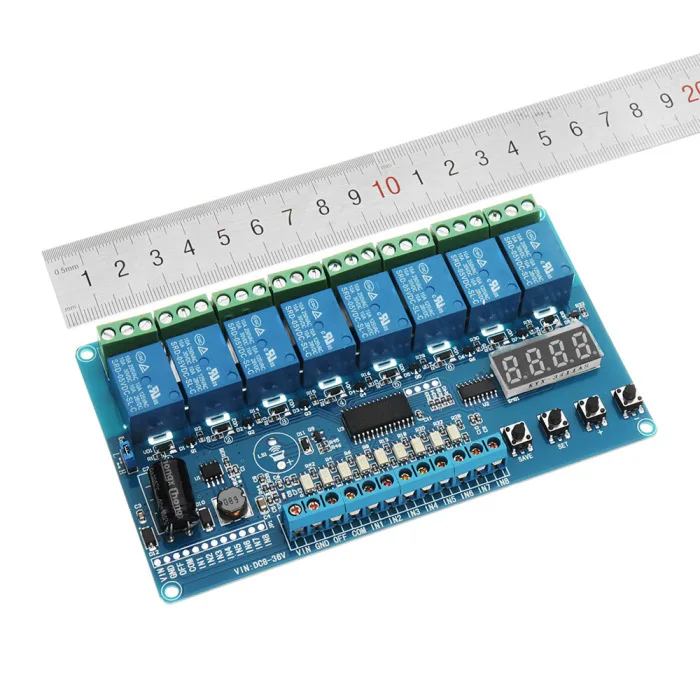

Size: 140 x 80 x 20mm

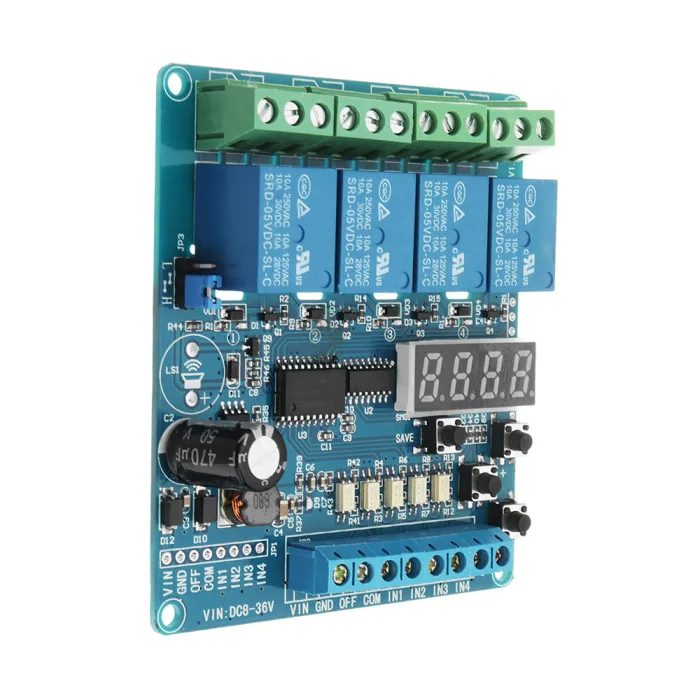

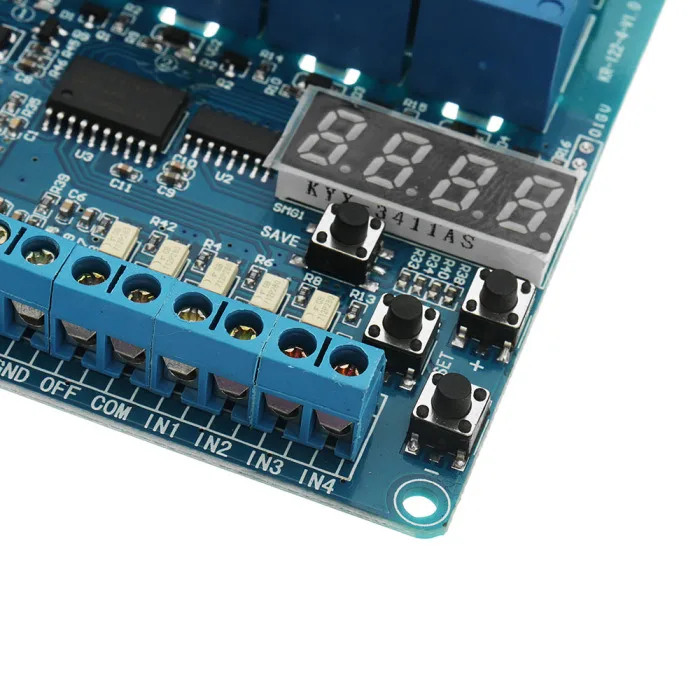

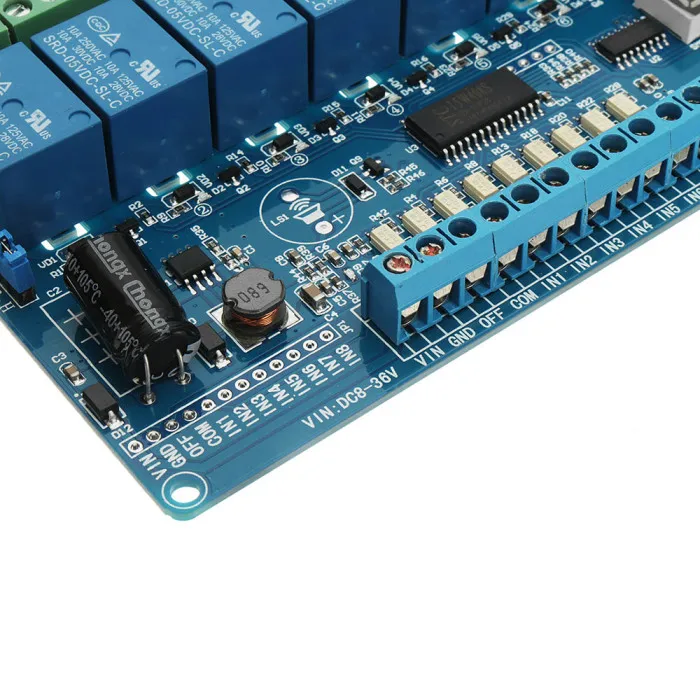

Module Interface:
Module voltage / signal input: 12-wire interface, all interfaces have terminal blocks for user convenience
Relay load output: 24-wire interface, all terminals have terminal blocks
1. VIN: DC power supply positive
2. GND: DC power supply negative
3. OFF: Power control terminal (power off when high level)
4. COM: the common end of the photoelectric isolation signal input
5. IN1-IN8: Input signal detection interface
Note:
1. The input signal detection interface can be active high or active low. Users can choose through the COM port. If COM is connected to H, IN1-IN8 is active high. If COM is connected to L, IN1-IN8 is active low!
2. Trigger voltage (COM, IN1-IN8 port voltage): Do not exceed 5V when high level, and do not exceed 0.8V when low level.

1 x модуль реле времени
