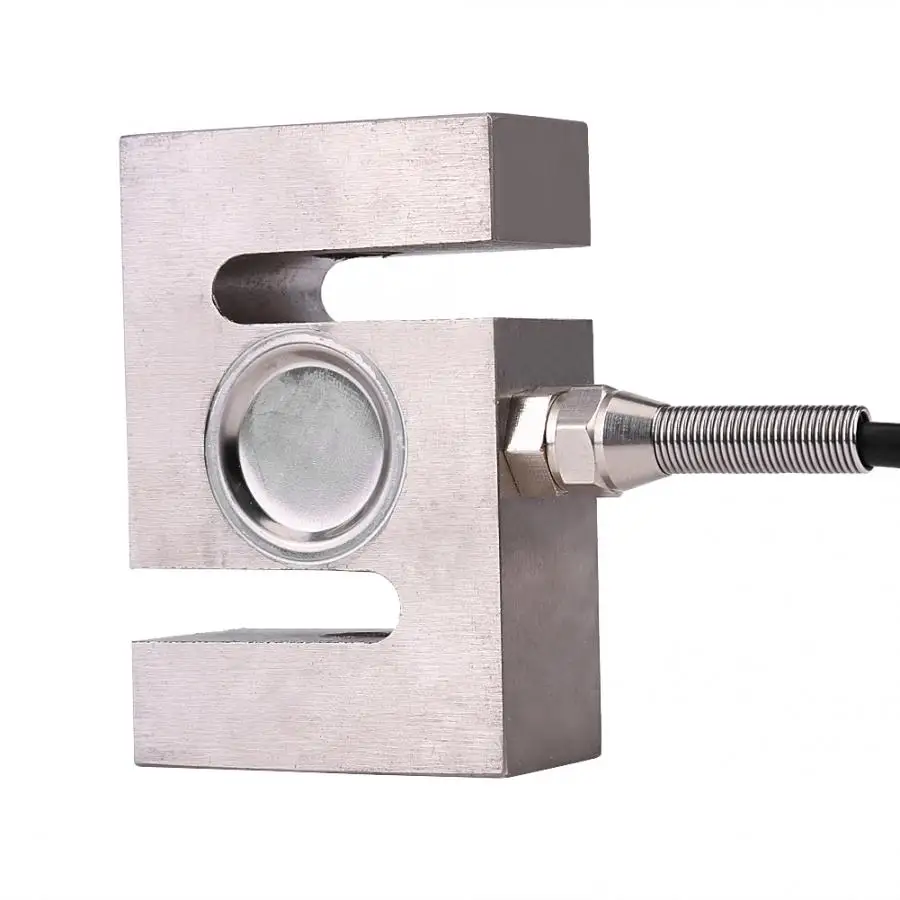

500kg beam load cell scale sensor scale weighting sensor with cable
Features:
With the characteristic of waterproof, dustproof, anti-seismic, anti-knock, suitable for all kinds of environments.High precision sensors are widely used in the field: mixing station, batching machine, asphalt station.
Adopt high quality alloy steel, and the design of anti-pressure bi-directional bearing, so with high precision and good stability.
The design of cover plate, fully protect the sensor chip, use nut fixed interface, avoid strong drag to cause the interface to fall off.
Equipped with 3 meters international superior sensor cable.
This S type beam load cell scale sensor is easy installation.
Specifications:
Type: weighing
Material:alloy steel
Physical properties of materials: conductors
Crystal structure of materials: polycrystalline
Process: film
Output signal: analog
Protection level: IP67
Linearity: ±0.02（%F.S.）
Delay: ±0.02（%F.S.）
Repeatability: ±0.02（%F.S.）
Sensitivity: 2.0mv/v
Drift: ±0.02%F.S
Input impedance: 350±10Ω
Output impedance: 350±5Ω
Weight: 700g
| Range | 5kg-500kg | Input resistance: | 350±10Ω |
| Sensitivity | 2.0mv/v | Output resistance | 350±5Ω |
| Nonlinear/hysteresis/ repeatability | ± 0.02%FS | Insulation resistance | ≥5000MΩ |
| creep | ± 0.02%FS | bridge voltage | 10(DC/AC) V |
| Zero output | ± 1.00%FS | Working temperature | - 20 to +60℃ |
| Zero point temperature effect | ± 0.02%FS/10℃ | Safety overload | 120%FS |
| Output temperature effect | ± 0.02%FS/10℃ | Material | alloy steel |
| Wiring method | input: red+, black-, output: green+, white- | ||
Package Included:
1x S type pressure sensor
