Features:
DVB Finder DVB-S2 Multi standard demodulation & decoding
Bluetooth connection for Android APP and APP
Support full satellite selection.
Technical support website:www.freesat.cn
Note: We reserve the right to change the design and OEM/ODM supported
Specifications:
Color:Green

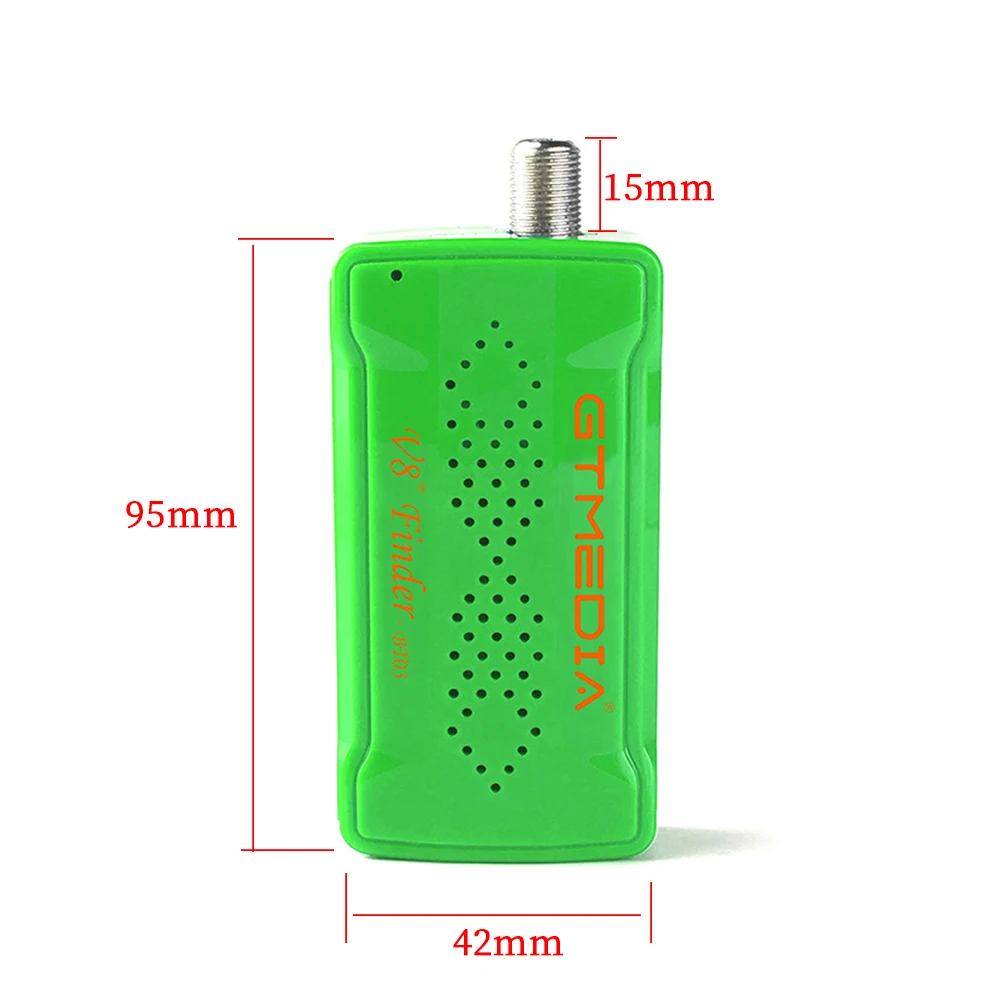

Size(L×W×H):Approx.42×95×15 mm
Flash Memory:32MB Serial Flash
DDR2 Memory:512M Bits
LED Indicator:Blue（Flashing:Not connected, Normally on: connected)
LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2)
Micro USB : DC 5V 1.5A
System introduction:
DVB-S:
1.DVB-S/S2 system standard:ETS 302 307(SCPC and MCPC receivable from C/Ku band satellite)
2.DiSEqC1.0support, 13/18V DC @ 350mA MAX,Overload Protection, 0/22K
3.Multi standard demodulation & decoding
4.DVB-S2 CCM,QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK+3/4, 4/5, 5/6, 8/9, 9/10
Legacy DVB-S,QPSK+1/2, 2/3, 3/4, 5/6, 7/8
5.VCM mode supported
6.Dummy frame insertion supported
7.Automatic standard recognition
8.Support 1 to 60Mbaud symbol rates
9.Fast channel blind scan for RF frequency & symbol rate acquisition
10.High performance equalizer, canceling echo introduced by front end
11.Simple AGC – Tuner interface
12.Build in DC cancellers to remove DC component
13.IQ imbalance compensator
14Automatic roll-off factor (0.35/0.25/0.20) detection
15.Automatic inversion
16.Signal quality and statistic, allowing improved monitoring and debug
17.DiSEqCTM v2.2 modulation output for full control of LNB and satellite antenna

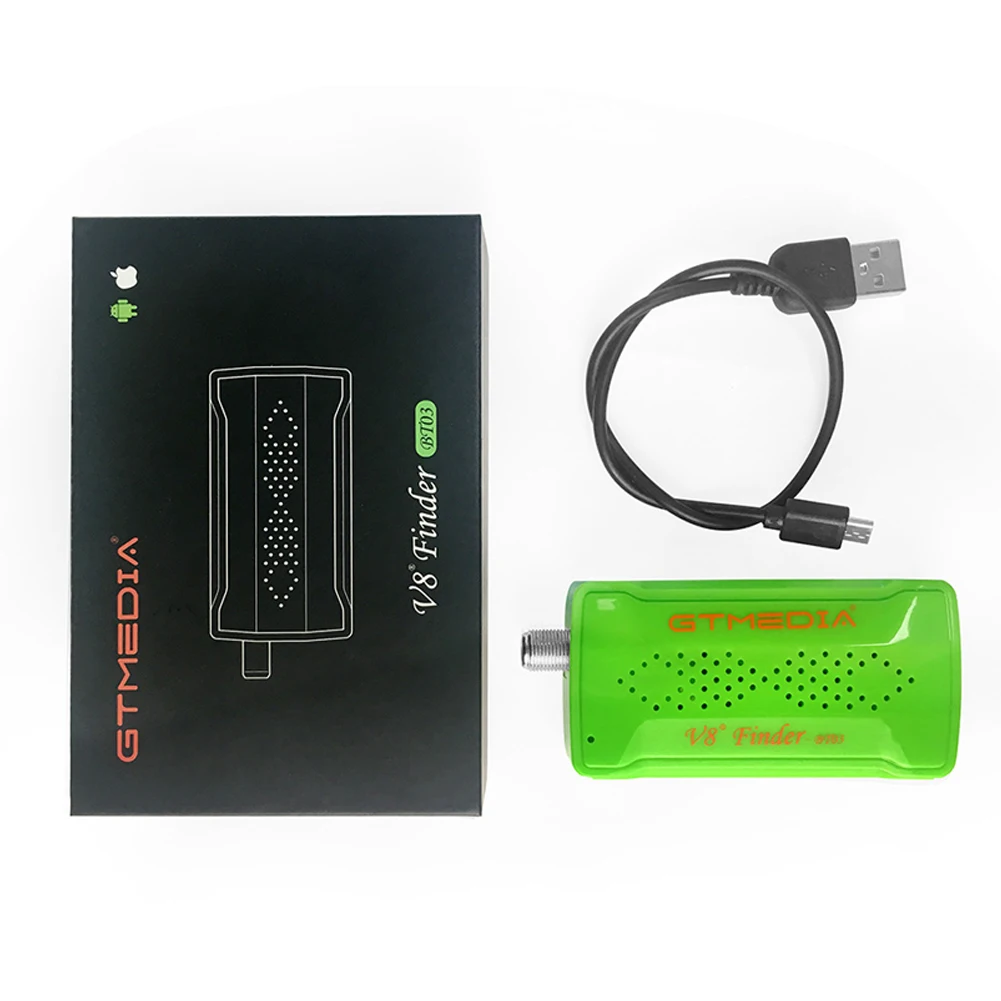

Package Included:
1× DVB Finder Box
1× USB cable
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
AccessoriesDVB Finder BOX*1, MINI USB cable*1
