Описание

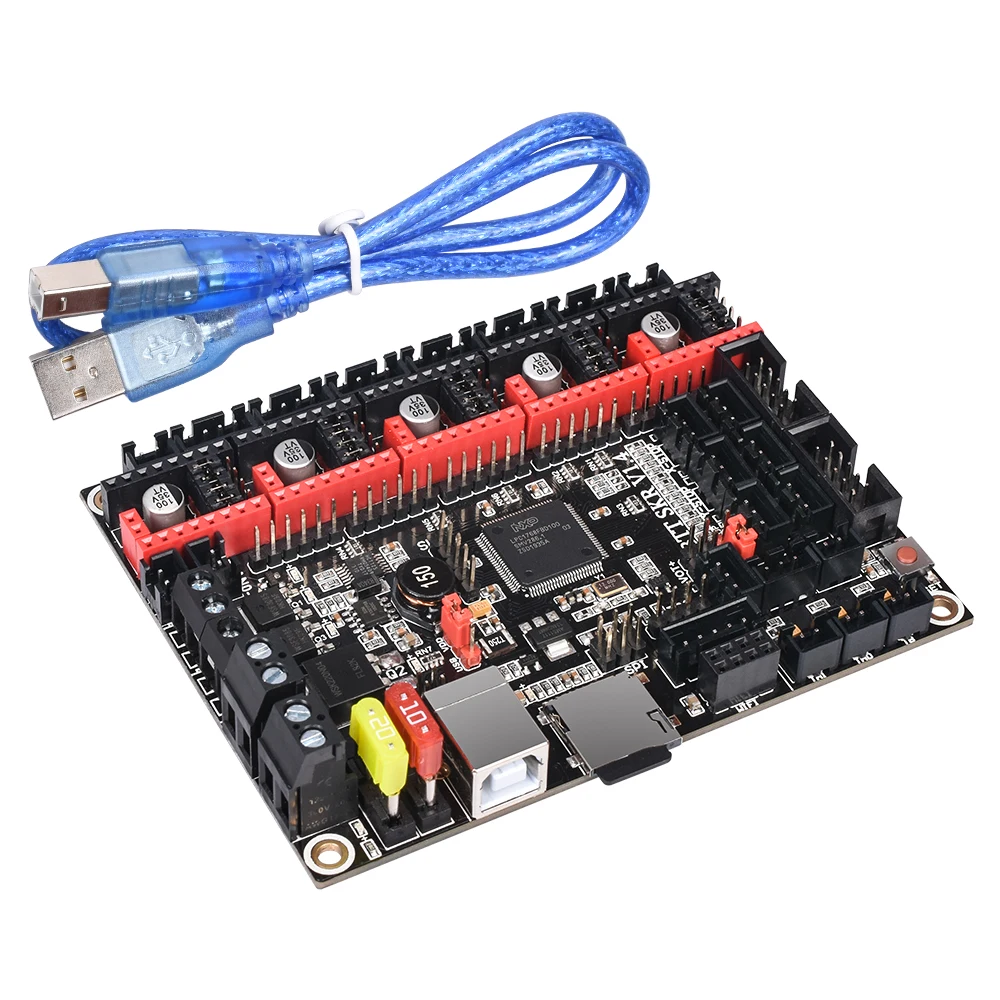

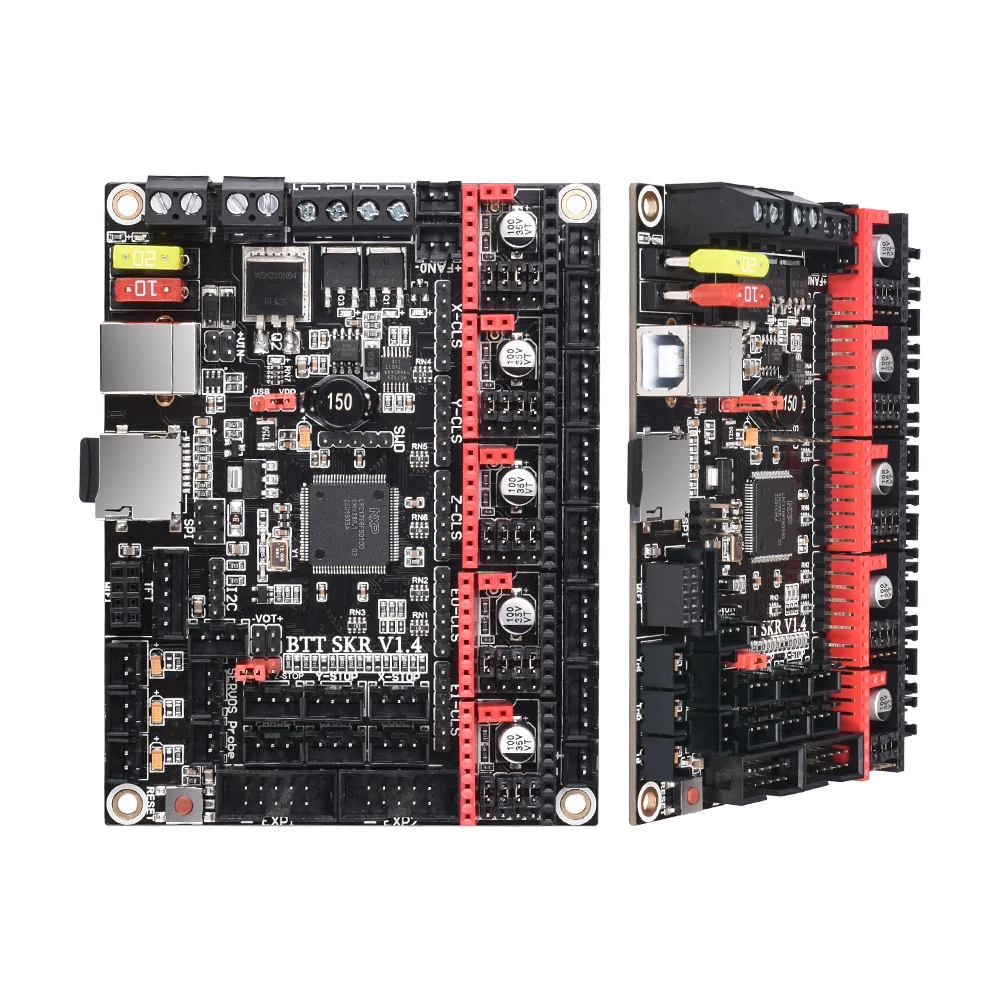

SKR V1.4 и SKR V1.4 Turbo (имеют те же данные):
https://github.com/bigtreetech/BIGTREETECH-SKR-V1.3/tree/master/BTT%20SKR%20V1.4

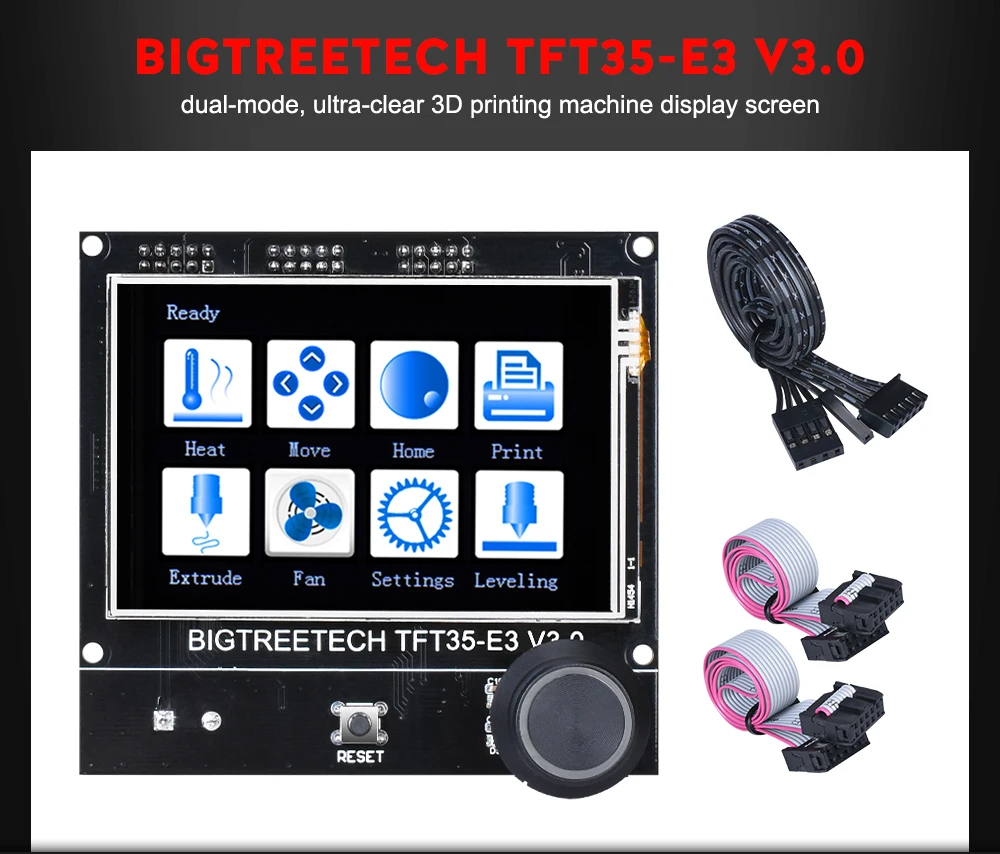

BTT TFT35-E3 V3.0 данные:
https://github.com/bigtreetech/BTT-TFT35-E3-V3.0
Демо-видео:
https://m.youtube.com/watch?v=VcXtEW4XY1A
Характеристики
- Бренд
- BIGTREETECH
- Тип товара
- Материнская плата
- Номер модели
- SKR V1.4 & V1.4 Turbo
- Product Name
- SKR V1.4 With Screen Kit
- SKR V1.4 Main Control Chip
- LPC1768
- SKR V1.4 Turbo Main Control Chip
- LPC1769
- Appearance Size
- 110*85mm
- Mounting Size
- 102*76mm
- Screen Appearance Size
- 93*87mm
- Microprocessor
- ARM Cortex-M3 CPU
- Screen Microprocessor
- STM32F207VCT6
- Input Voltage
- DC12V-DC24V 5A-15A
- Logic Voltage
- DC 3.3V
- Screen Power Input
- DC 5V
- Screen SD Card Logic Voltage
- 3.3V and 5V
- Screen Working Mode
- Touch screen mode, 12864LCD mode
- Driver Working Mode
- SPI,UART,STEP/DIR
- Sensor Interface
- TH0, TH1, TB, 3 channel 100K NTC (thermal resistance)
- Support File Format
- G-code
- Supported Machine Architecture
- XYZ,Delta,Kossel,Ultimaker,Corexy
- Condition
- New 100%
