Features:
Measure or test DC and voltage, DC and current, resistance, capity, diodes and in-circuit continuity (buzzer) test
It is kind of high cury Multimeter.
Auto Power Off ; Low Battery Display; Diode Test; Continue Buzzer
Fit for schools, ftories, families, and amateur wireless lovers
High sensitivity / DC voltage DC current measurement
Specifications:
Color:Red/Orange
Size(L×W×H):Approx.185×90×35mm
Power by: 2 x AAA batteries(not included)
Digital multimeter DT-9208A technical parameters:
DC voltage: 200mV-1000V±(0.5%+1dgt)
voltage: 20V-750V±(0.8%+3dgt)
DC current: 20mA-20A±(0.8%+1dgt)
current: 200mA-20A±(1.8%+3dgt)
Resistance: 200Ω-200MΩ±(0.8%+1dgt)
Capitance: 2nF-20μF±(2.5%+3dgt)
Frequency: 2KHz-20KHz±(1.5%+5dgt)
Temperature : -40 ° C ~ 1000 ° C ± (0.75% + 3dgt)
Diode: can
Triode: Yes
On-off measurement: can
Temperature test: Yes
Logic level test: can
Sleep mode: Yes
Data retention: can
Maximum display value: 1999

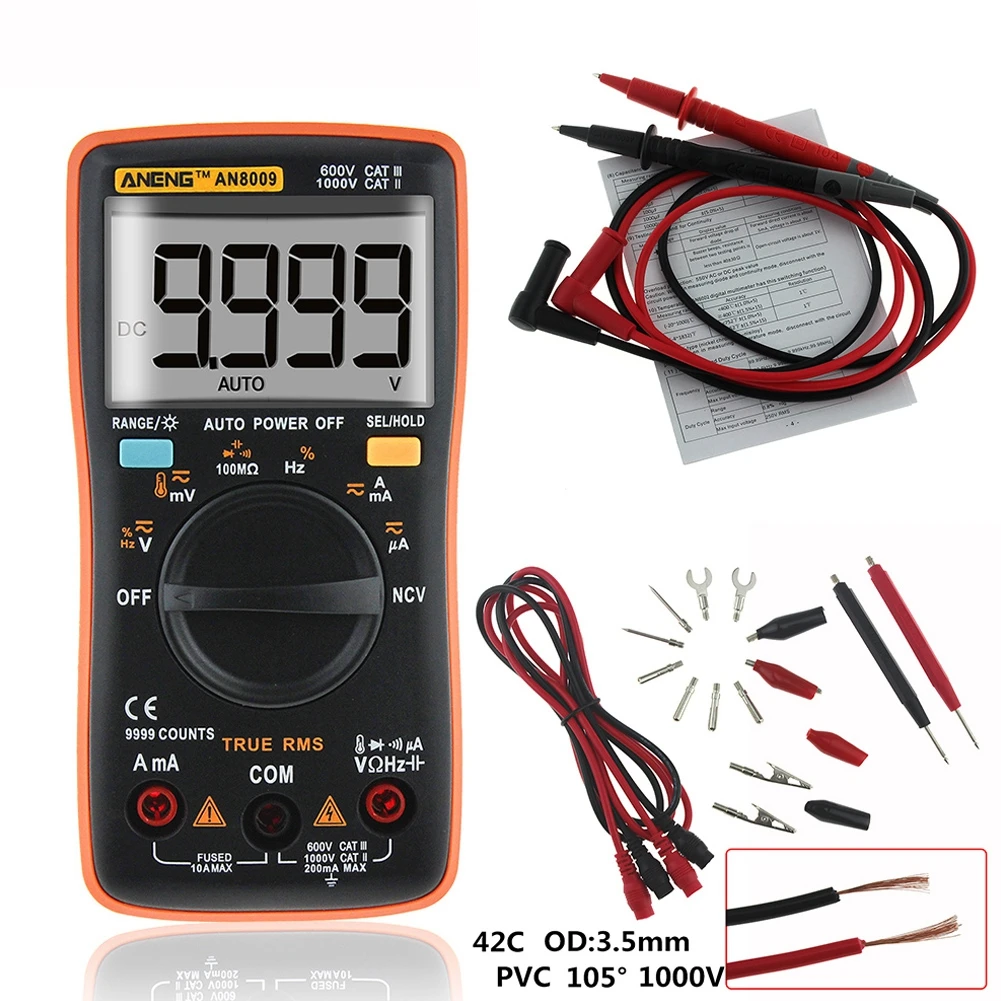

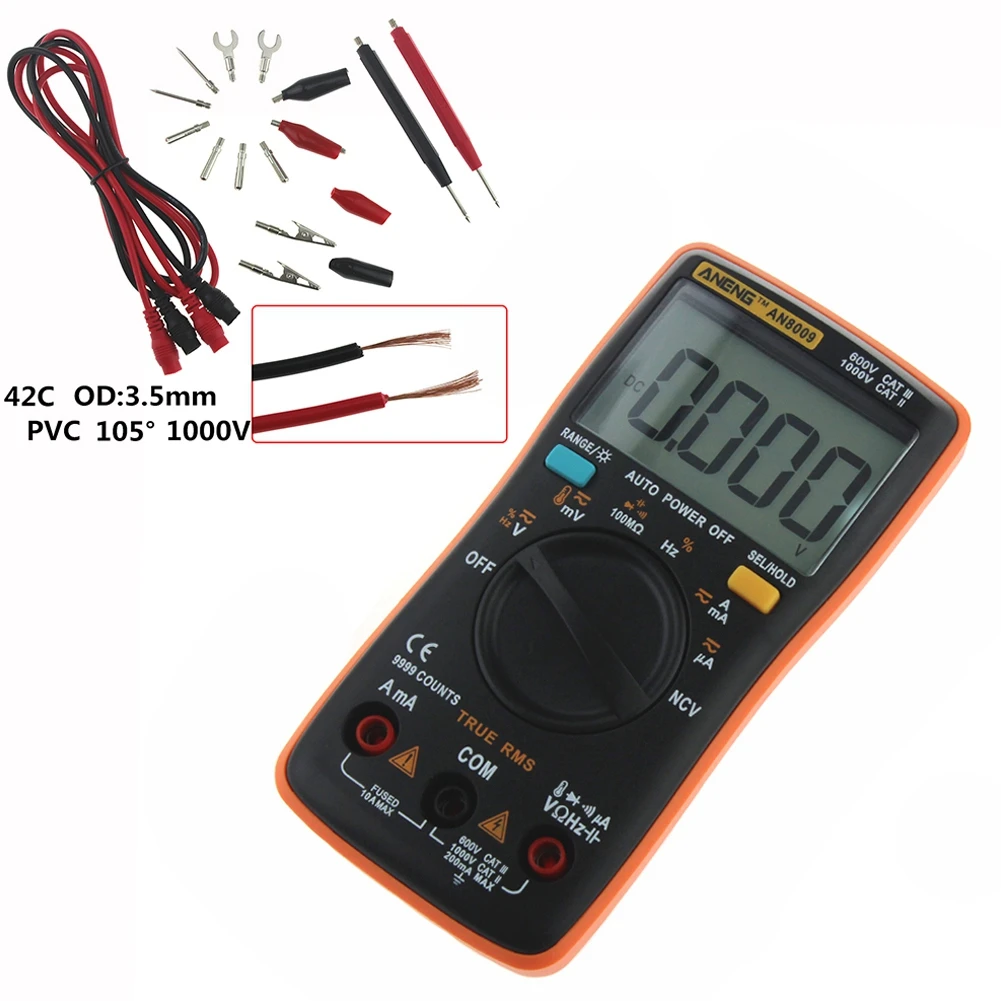

Pkage included:
1xDigital Multimeter
1xUser Manual

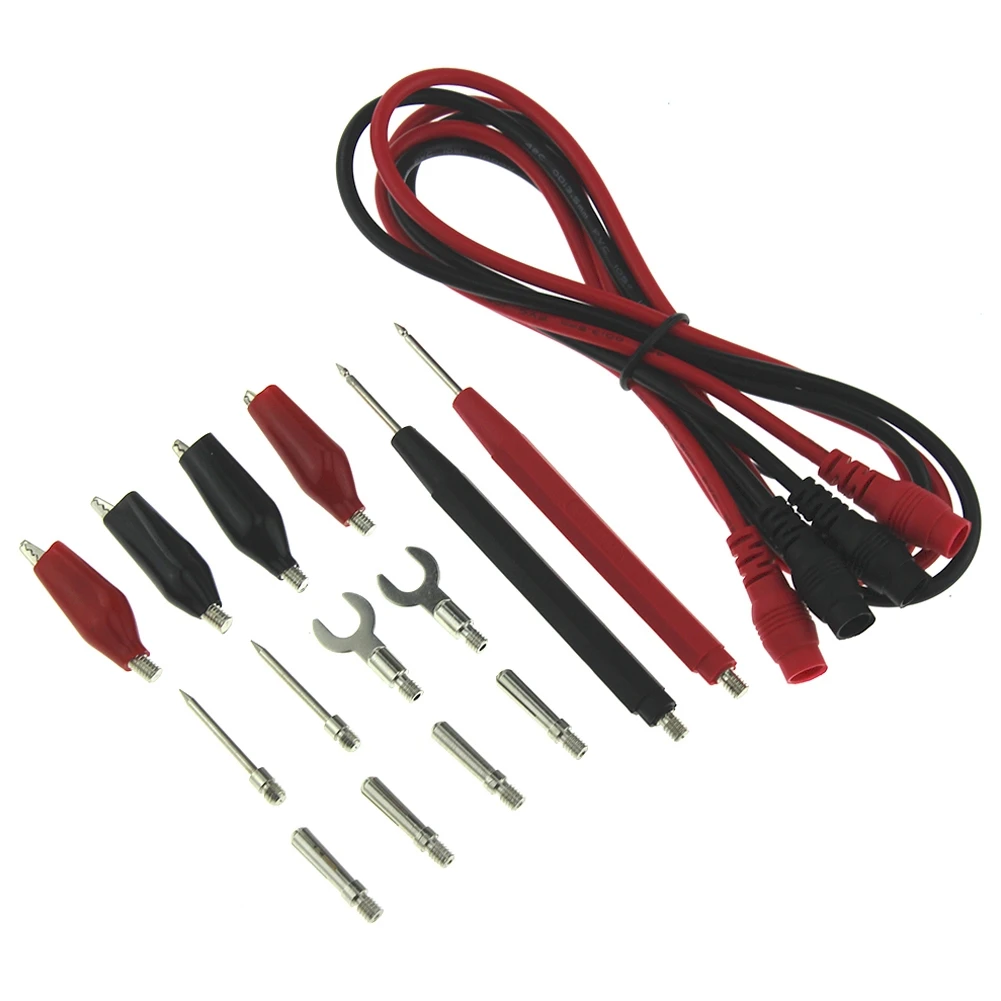

2xTest Pen
1x16-in-1 combination line
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.













Характеристики
- Бренд
- Woopower
- Материалы для самостоятельного изготовления
- Электрический
- Номер модели
- Digital Multimeter
- AC Напряжение
- 20V-750V
- Диапазон измерения ёмкости
- 2nF-20μF
- Размеры
- 185x90x35mm
- Диапазон измерения сопротивления
- 200Ω-200MΩ
- Тип дисплея
- Цифровой дисплей
- Постоянного тока
- 20mA-20A
- Переменного тока
- 200mA-20A
- DC Напряжение
- 200mV-1000V
- Рабочая температура
- Other
