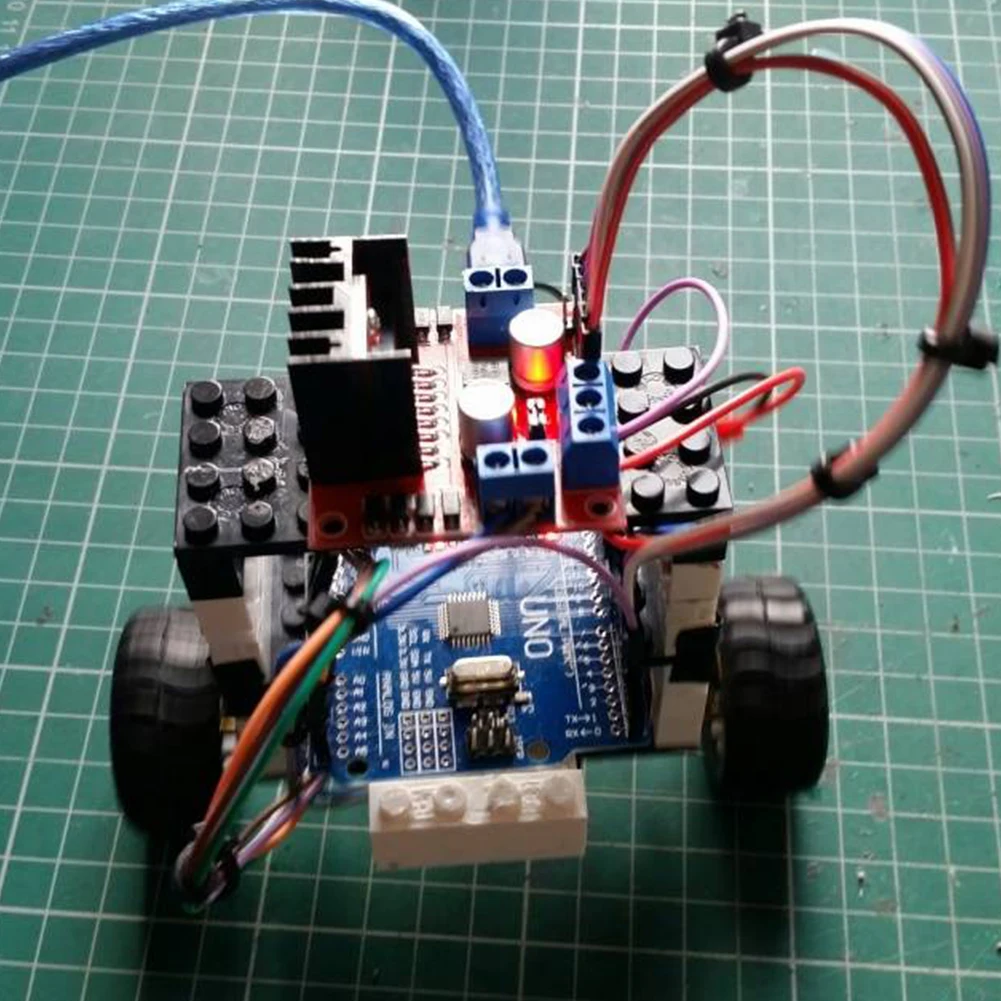

Двойной H Мост постоянного тока шаговый двигатель привод плата контроллера Модуль L298N для Arduino

L298N Dual H Bridge Stepper Motor Driver Board DC Stepper Motor Drive Controller Board Module for Arduino

Feature:

Low heat,outstanding anti-interference performance.

Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.

Built-in 78M05,get power from drive power,however, when drive power over12V, please use the external 5v power as power supply.

Large capacity filter capacitance,afterflow protection diode, more stable and reliable.

Specifications:

Chip: L298N

Logical voltage: 5V

Drive voltage: 5V-35V

Logical current: 0mA-36mA

Drive current: 2A (MAX single bridge)

Storage temperature: -20 to +135

Max power: 25W

Weight: 30g

Size: 43 x 43 x 27mm

Tips:

This module has a built-in 5v power supply, when the driving voltage is 7v-35

This supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however leading out 5v for external use is available.

When ENA enable IN1 IN2 control OUT1 OUT2

When ENB enable IN3 IN4 control OUT3 OUT4

Note: Package is not included the screws.

Package included:

1 x Module
