Description

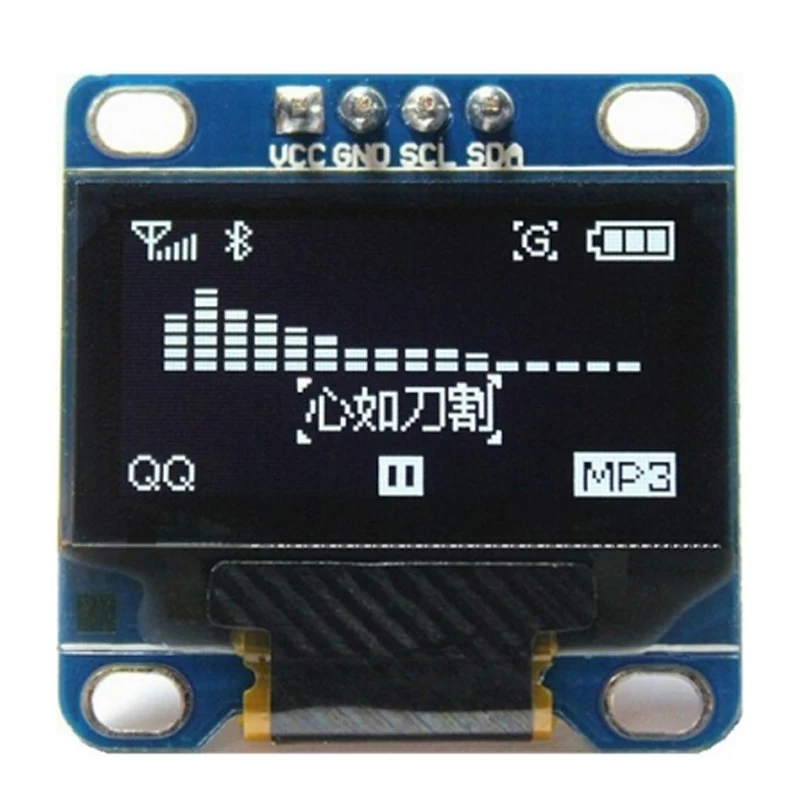

OLED I2C display screen size 0.96 and resolution 128 × 64 features:
Not required backlight display High resolution: 128*64 pixels. Viewing angle: more than 160 degree. Fully compatible withArduinoThe controller 51 series, MSP430 series,STM32The CSR IC etc. Ultra-low power consumption: when fully свечении screen 0.08 W Operating voltage: 3 V ~ 5 V DC. Working temperature: from-30 to 70 C. I2C/IIC interface, only need to 2 Wire. Driver IC: SSD1306. Board size: 2.7 cm x 2.8 cm. Display size: 2.7 cm x 1,95 cm (0,96 & Prime; ") Color: MonochromeOLED I2C display 128 × 64 connection
VCC-+ 5 V (+ 5 V)
GND-GND (ground)
SDA-pin SDA (pin A4 for Arduino Nano V3)
SCL-pin SCL (pin A5 for Arduino Nano V3)
OLED (Organic Light-Emitting Diode) display uses technology in which LEDs themselves emit light without additional подсвечивания as such in LCD displays. OLED Display consists of thin Multilayer Organic Film, placed between the anode and cathode. OLED has high potential applications for almost all types of displays and is regarded as the ultimate technology for the next generation of flat displays.Advantages Of OLED display: Quality information display, perfect viewing angles-image can be seen without loss of quality from any angle, instant response.
Packing List:1 x OLED I2C display screen size 0.96 and resolution 128 × 64
