Описание
Обзор: материнская плата

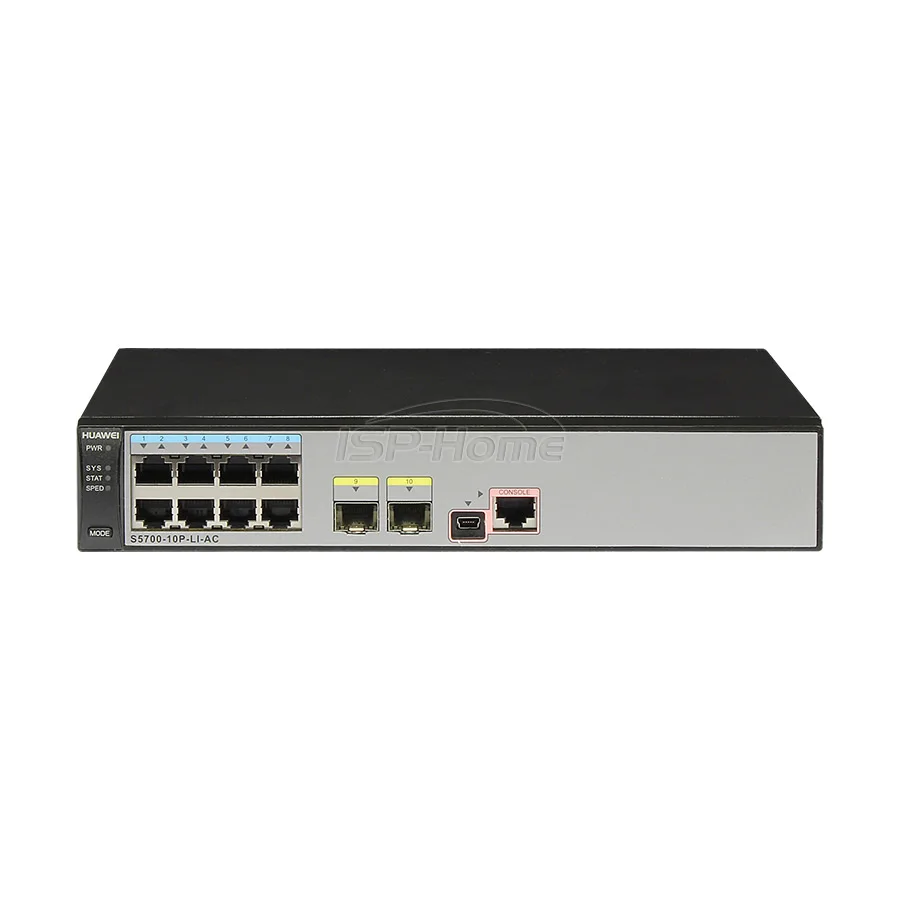

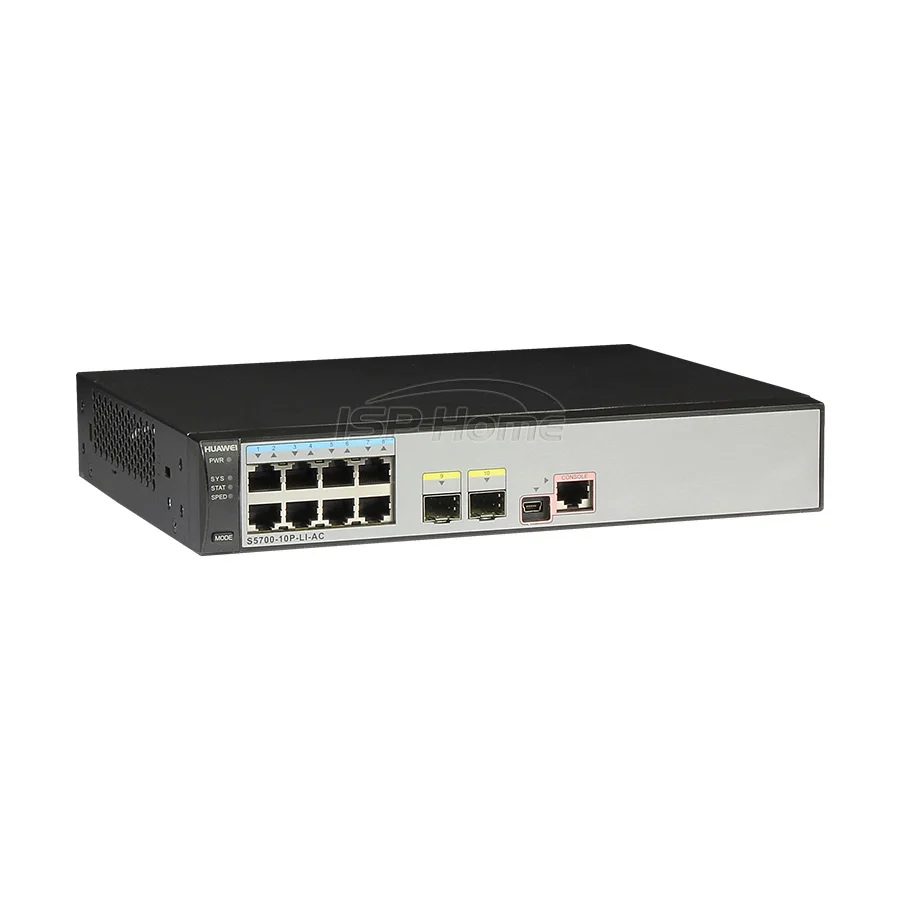

Коммутатор huawei S5700-10P-LI-AC, 8 портов 1000BASE-T, 2 порта GE SFP
С фиксированным питанием 1 переменного тока
Без расширения слотов для карт
Слои 3 коммутатора Ethernet
Переадресация: 15 Mpps
Мощность переключения: 256 Гбит/с
16 K записи mac-адресов
Non-POE
Huawei S5700-10P-LI-AC переключатель поддерживает 8x10/100/1000 Base-T порты Ethernet, 2 x GE SFP порта и может заряжаться через питание от сети переменного тока. Это один из упрощенных гигабитных коммутаторов huawei S5700-LI серии. FTTx сетей магазина (Hong Kong Pure Network co., Ltd,Www.isp-home.comВ наличии 100% оригинальных новых S5700-10P-LI-AC.
S5700-10P-LI-AC Specification | |
| Manufacturer | Huawei |
| Manufacturer Part Number | S5700-10P-LI-AC |
| Form Factor | Fixed, Stackable |
| Switch Port | 8 GE ports, 2 GE SFP ports |
| Power Over Ethernet (PoE) | Non-POE |
| Extended slot | Provides an extended slot for a stack card |
| Max Number of Stacks | 48Gbps |
| DRAM Memory | 256 MB |
| Flash Memory | 32 MB |
| Performance | |
| Forwarding performance | 15 Mpps |
| MAC address table | IEEE 802.1d compliance |
| 16 K MAC address entries | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4 K VLANs |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| E-Trunk | |
| IP routing | Static routing, ECMP |
| RIPv1, RIPv2 and RIPng | |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination | |
| MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| Management | |
| Management and maintenance | |
| Power Supply Specifications | |
| Power Device | Power supply - Non-PoE |
| Power Redundancy | No |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Width | 25cm |
| Depth | 18cm |
| Height | 4.36cm |
| Weight | 5.0kg |
| MTBF | 37years |
| System Software | |
| Software Version | Standard Version |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
Характеристики
- Бренд
- WellLink
- Тип товара
- Ethernet Switch
- Номер модели
- S5700-10P-LI-AC
- Brand
- Huawei
