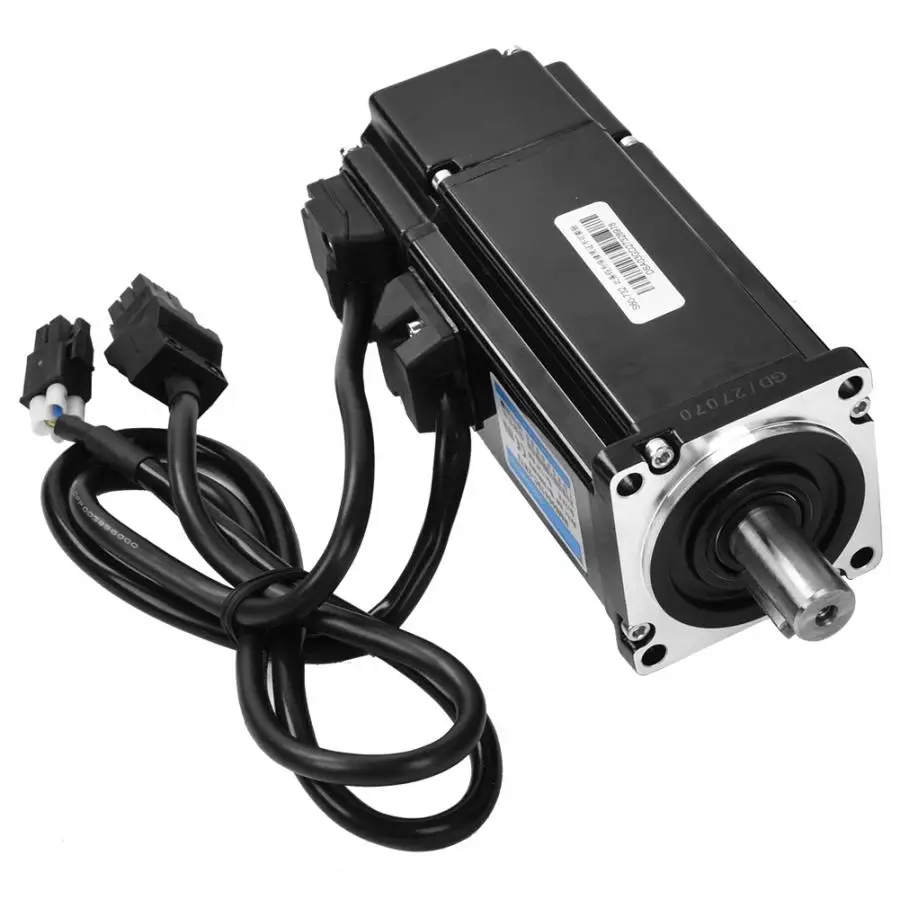

Servo Drive Motor Kit 1pc Driver + 2pcs Servo Motor 400W 1.27NM AC220V 3000RPM

Features:

1. Package content: one AC servo drive + two servo drivers.

2. The servo drive can drive two 400W servo motors at the same time, only supports position control mode, with over-voltage, over-current, over-temperature and other protection and alarm functions.

3. The drive supports for PPC debugging software, which can perform mechanical characteristic analysis, parameter setting and other functions, and the operation is intuitive and simple.

4. The drive supports for standard 485 and CAN fieldbus, custom for GH-Bus protocol industrial Ethernet bus interface.

5. Servo motor provides 1.27N.m moment of force, 3000RPM, AC 220V, 2.8A.

6. Wide range of applications: Suitable for a variety of automation equipment and instruments in the field of motion control, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machines, marking machines, cutting machines, garment plotters, CNC machine tools, automated assembly equipment, etc.

7. It is the first choice for users who expect low noise, high speed performance and competitive price/performance ratio.

Specification:

Condition: 100% Brand New

Item Type: AC Servo Drive Motor Kit

Power: 400W

Moment of Force: 1.27NM

Voltage: AC 220V

Speed: 3000 RPM

Motor Parameters:

Motor Model

Rated Power

Rated Moment ofForce

Rated speed

Rated voltage

Rated current

Peak Moment ofForce

Back EMF

Moment coefficient

Rotor inertia

Winding resistance

Winding inductance

Heat resistance rating

N.m

RPM

N.m

V/Krpm

N.m/A

Kg.m²

HM600413C-2NT3

400

1.27

3000

220

2.8

3.8

0.5

0.3x10-4

5.83

12.2

BLevel

Drive Parameter:

Input power		Single or three phase AC220V -15~+10% 50-60HZ
Encoder type		2500 line incremental encode
Control method		Position control
Regenerative resistor		Built-in regenerative resistor or external regenerative resistor (optional)
Control characteristics	Speed frequency response	≥200HZ
	Speed fluctuation rate	<±0.01% (load fluctuation 0~100%); <±10% (rated voltage -15~+10%) (value corresponds to rated speed)
	Speed control range	1:10000 (the lower limit of the speed control range is smooth running at rated load without creeping)
	Pulse frequency	Less than or equal to 200K (differential mode), less than or equal to 200K (single-ended mode)
Position control	Input mode	1. Pulse + symbol 2. CW pulse + CCW pulse 3. Positive and negative AB pulse
	Electronic gear ratio	Setting range: 1~9999/1~9999
	Feedback pulse output	Phase A, Phase B, Phase C: linear drive output; number of divided pulses: can be set arbitrarily
Feedback method		Motor shaft end incremental pulse encoder feedback
Parameter setting method		Local keyboard setting input, or download via computer
Applicable load inertia		Less than 3 times the motor inertia
Braking method		Resistance energy braking
Installation method		Wall mounting
Grounding method		Grounding the case, grounding resistance≤0.1Ω
Monitoring functions		Speed, current position, command pulse accumulation, position deviation, motor current, command pulse frequency, operating status, input and output terminal signals, etc.
Protection function		Overspeed, main power overvoltage and undervoltage, overcurrent, overload, brake abnormality, encoder abnormality, position tolerance, etc.
Display, operation		6-digit LED digital tube, 4 buttons, 5-digit LED digital tube, 5 buttons
Use environment	Temperature	Work: 0~55°C Storage: -20~80°C
	Humidity	Less than 90% (no condensation)
	Vibration	Less than 0.5G (4.9m/S²), 10~60HZ (non-continuous operation)
