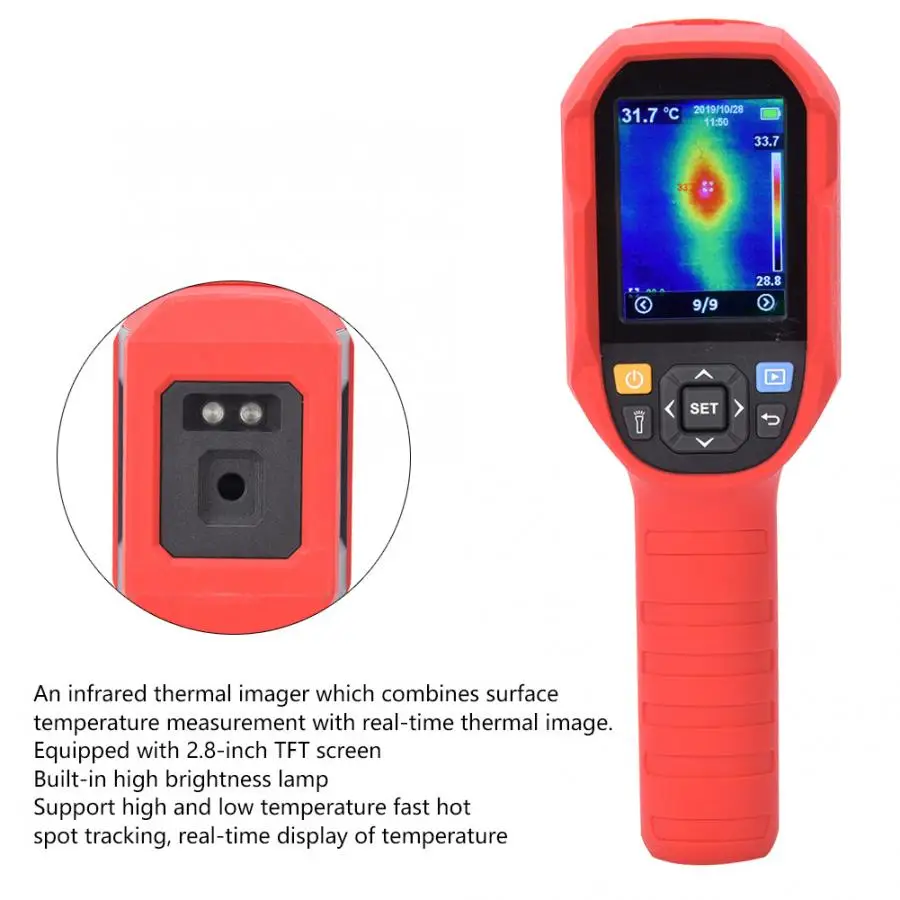

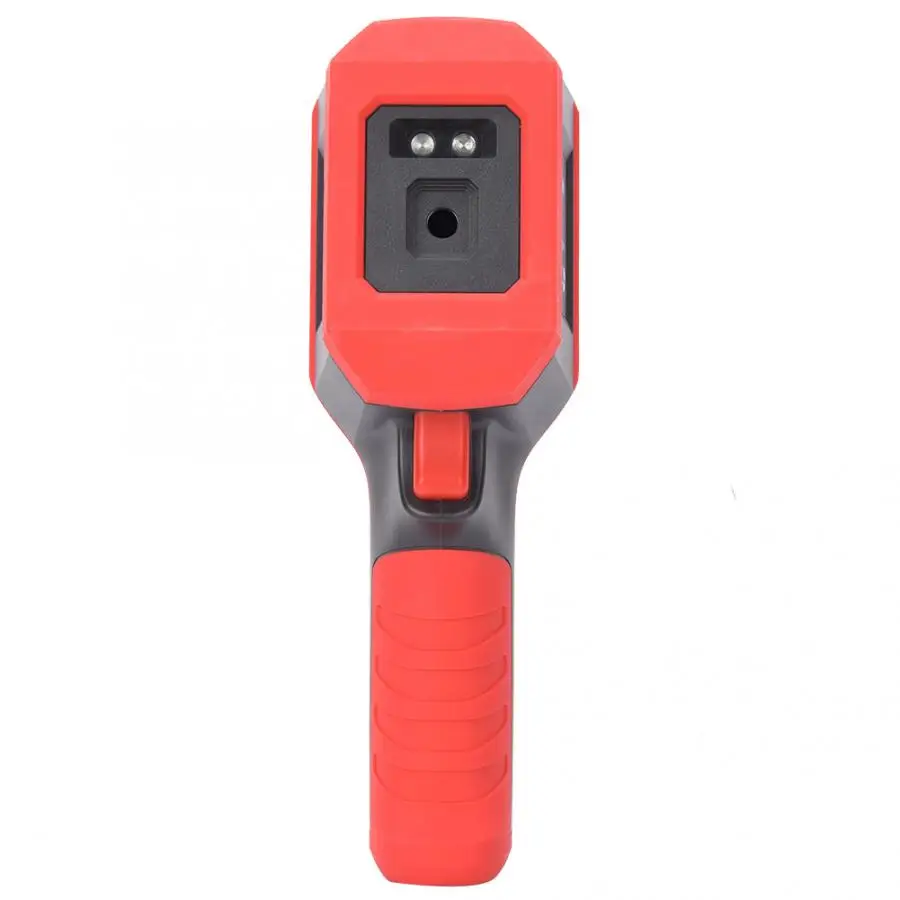

UNI-T UTi165A Handheld professional Thermal Imager Infrared Thermal Imaging Camera

Feature:

1. UTi165A is an infrared thermal imager which combines surface temperature measurement with real-time thermal image.
2. Equipped with 2.8-inch TFT screen, the potential problems can be clearly displayed on the screen, and the measurement is convenient.
3. The body design is beautiful, functional, durable, ergonomic design and easy to grasp.
4. The built-in high brightness lamp allows you to easily find the tested object when working in dark environment.
5. A new generation of imported sensor module is adopted to ensure excellent infrared resolution and rich color plate mode, which can cope with a variety of shooting environments.
6. Support high and low temperature fast hot spot tracking, real-time display of temperature, fast analysis of problems, troubleshooting.
7. With excellent performance, wide measuring range and photo taking function, it is your preferred temperature measuring tool.

Specification:

Condition: 100% Brand New
Item Type: Thermal Camera
Material: ABS
Infrared Resolution: 160x120
Temperature Range: -10°C - 400°C
Accuracy: ±2.0°C Or ±2.0%
Screen: 2.8 Inch TFT Screen

Model	UTi165A
Thermal Imager Specifications
Sensor	Uncooled Focal Plane
Temperature Range	-10 ° C - 400 ° C
Resolution	0.1 ° C
Mode	Automatic Gain
Accuracy	±2C or 2%
Temperature Response Time	≤500ms (95% of Reading)
Emissivity	0.95 (Default) (0.01 - 0.99 Adjustable) System has preset values
Thermal Imaging Pixel	19200 (160x120)
Pixel Size	17μm
Swatch	Grey and White, Red and White, Blue and White, Rainbow, Iron Red
Infrared Spectrum Bandwidth	8-14μm
Field of View (FOV)	56°(H)x42°(V)
Instantaneous Field Of View (IFOV)	11mrad
Thermal Imaging Sensitivity	<50mK
Frame Rate	<9Hz
Temperature Display	Center point temperature measurement and high and low temperature tracking
Image Format	bmp
Button	10 buttons (power button, camera button. Back button, left and right navigation buttons, set button, picture browsing button, LED button)
General
PC Analysis Software (PC)	Support
Data Communication	Type-C USB
Display Type	2.8in TFT LCD
Display Resolution	320x240
Battery	Li-Ion 3.7V/1 x 5000mAh 22650 Battery
Automatic Shut-Down	Optional (5min 10min 30min) Default 30min
Usage Time	Not Less Than 6 Hours
Charging Time	About 4 Hours
Charging Voltage/Current	5V/2A
Image Storage	TF Card
Drop Request	2m / 6.6ft
IP Rating	IP65
Certification	CE
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Operating Temperature	0 - 50 °C (32 - 140 °F)
Working Humidity	<90% RH (Non-Condensing)
Altitude	Not More Than 2000m
Package
Color	Red + Gray
Weight	650g / 22.9oz

Package List:

1 x Thermal Camera

1 x English Manual

1 x TF Card (16G)

1 x Bag

1 x USB Cable
