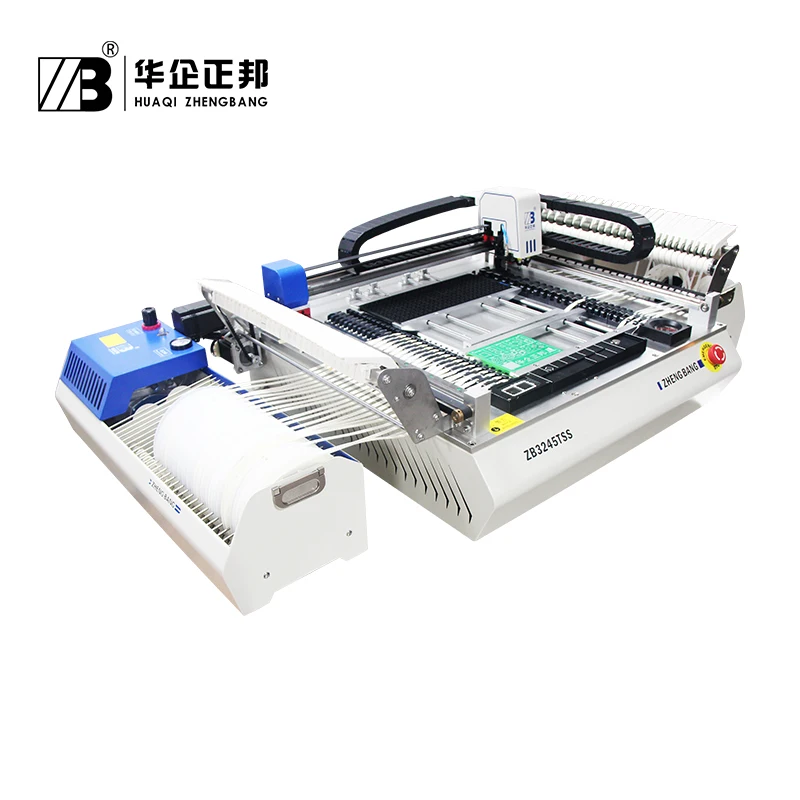

Advanced SMT LED Pick and Place Machine 、PCB Installation Pick Place Machine

Brand Name

HUAQIZHENGBANG

Application

SMT series pick and palce machine

Model Number

ZB3245TSS

Mounting number

2PCS

Mounting precision

0.025mm

Mounting angle

0~360°

Theoretical speed

7000PCS/h

Normal mounting

5500PCS/h

Visual mounting

4000 PCS/h

Nozzle type

Juki series nozzle

PCB minimal Size

10*10mm

PCB maximum Size

320*450mm

PCB thickness

≤2mm

Preposition IC material level

10PCS

Postposition IC tray

1PC

X/Y axis moving range

430*530mm

Z axis moving range

18mm

Z axis rotation range

0~360°

A visual camera

CCD High-definition camera

Recognition capability

MAX.20*20mm

PC system

MicrosoftWIN7

Operational software

Researching and development independently

Compatible file format

CSV.format

Program method

Support online and offline ways

Air pressure

0.4Mpa

Vacuity degree

-92kpa

Power

230W

Power supply

AC220V±10% 50Hz

Main engine outline size

L990*W730*H375mm

1#Materials feeder outline size

L235*W700*H245mm

2#Materials feeder outline size

L235*W470*H245mm
