Характеристики
- Бренд
- HUAQIZHENGBANG
- Применение
- surface mounting
- Номер модели

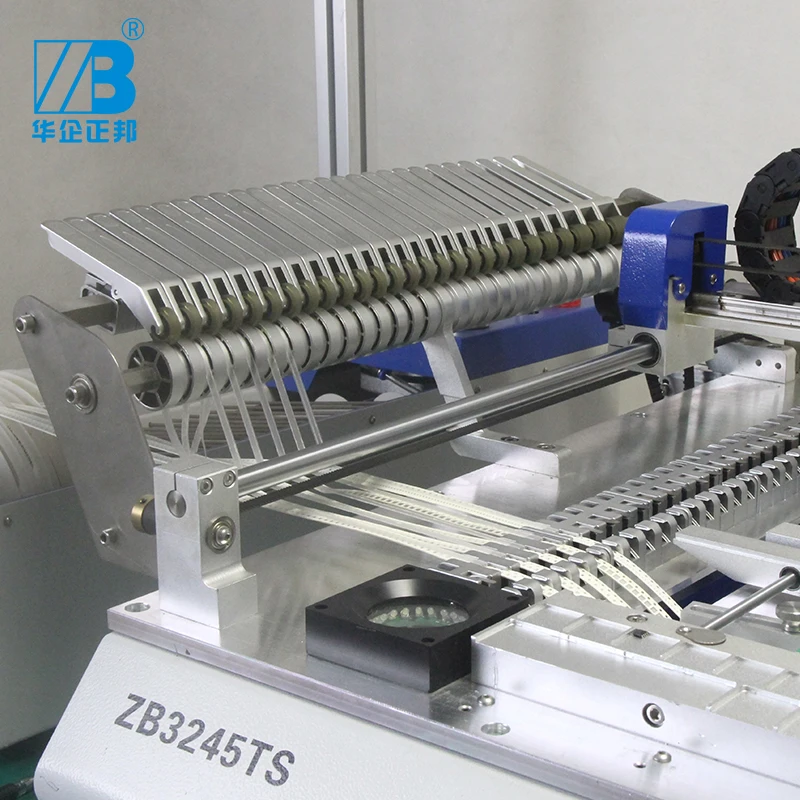

- ZB3245TS
- Mounting number
- 2PCS
- Mounting precision
- 0.025mm
- Mounting angle
- 0~360°
- Theoretical speed
- 6500PCS/h
- Normal mounting
- 5000PCS/h
- Visual mounting
- 3500 PCS/h
- Nozzle type
- Juki series nozzle
- PCB minimal Size
- 10*10mm
- PCB maximum Size
- 320*450mm
- PCB thickness
- ≤2mm
- Preposition IC material level
- 10PCS
- Postposition IC tray
- 1PC
- X/Y axis moving range
- 430*530mm
- Z axis moving range
- 10mm
- Z axis rotation range
- 0~360°
- A visual camera
- CCD High-definition camera
- Recognition capability
- MAX.20*20mm
- PC system
- MicrosoftWIN7
- Operational software
- Researching and development independently
- Compatible file format
- CSV.format
- Program method
- Support online and offline ways
- Air pressure
- 0.4 Mpa
- Vacuity degree
- -92kpa
- Power
- 150W
- Power supply
- AC220V ±10% 50Hz
- Main engine outline size
- L830*W730*H375mm
- Materials feeder outline size
- L235*W700*H245mm
